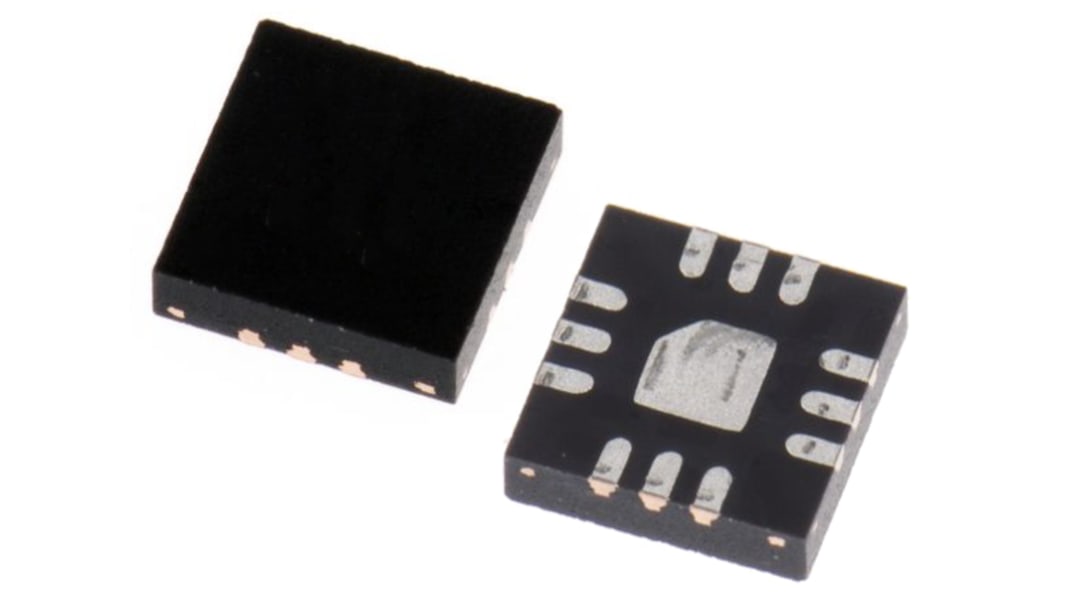

Renesas Electronics 1-polet skifte RF omskifter, 12 Ben TQFN
- RS-varenummer:
- 250-3505
- Producentens varenummer:
- F2976NEGK
- Brand:
- Renesas Electronics
Kan ikke leveres i øjeblikket
Vi ved ikke, om dette produkt kommer på lager igen. RS har planer om at tage det ud af sortimentet inden længe.
- RS-varenummer:
- 250-3505
- Producentens varenummer:
- F2976NEGK
- Brand:
- Renesas Electronics
Egenskaber
Tekniske referencer
Lovgivning og oprindelsesland
Generel produktinformation
Find lignende produkter ved at vælge én eller flere attributter.
Vælg alle | Attribut | Værdi |
|---|---|---|
| Brand | Renesas Electronics | |
| Produkttype | 1-polet skifte RF omskifter | |
| Benantal | 12 | |
| Emballagetype | TQFN | |
| Bilindustristandarder | Nej | |
| Højde | 500 μm | |
| Længde | 2 mm | |
| Driftstemperatur maks. | 105 °C | |
| Forsyningsspænding maks. | 5 V | |
| Min. driftstemperatur | -40 °C | |
| Forsyningsspænding min. | 3.3 V | |
| Monteringstype | Overflade | |
| Serie | F2976 | |
| Standarder/godkendelser | RoHS | |
| Undertype | Bredbånd med høj linearitet | |
| Teknologi | RF-omskifter | |
| Bredde | 2 mm | |
| Vælg alle | ||
|---|---|---|
Brand Renesas Electronics | ||
Produkttype 1-polet skifte RF omskifter | ||
Benantal 12 | ||
Emballagetype TQFN | ||
Bilindustristandarder Nej | ||
Højde 500 μm | ||
Længde 2 mm | ||
Driftstemperatur maks. 105 °C | ||
Forsyningsspænding maks. 5 V | ||
Min. driftstemperatur -40 °C | ||
Forsyningsspænding min. 3.3 V | ||
Monteringstype Overflade | ||
Serie F2976 | ||
Standarder/godkendelser RoHS | ||
Undertype Bredbånd med høj linearitet | ||
Teknologi RF-omskifter | ||
Bredde 2 mm | ||
The Renesas Electronics single-pole double-throw (SP2T) reflective RF switch features high linearity and wide bandwidth. This device is optimized from 5MHz to 1.8GHz to support downstream cable modem future migration for DOCSIS 3.1 applications, and operates at up to 10GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50Ω or 75Ω terminating impedance applications. The F2976 uses a single positive supply voltage of either +3.3V or +5.0V and is compatible with either 1.8V or 3.3V control logic.
This RF switch provides extremely low insertion loss across the entire bandwidth while providing superb distortion performance
It is optimized for DOCSIS 3.1 applications for up to 1.8GHz
It is optimized for Wi-Fi applications up to 5.9GHz
It provides low insertion loss and high isolation
It allows fast switching and no external matching is required
It is available in 2mm x 2mm 12-pin TQFN package
Operating temperature range is -40°C to +105°C
